Test & Drain

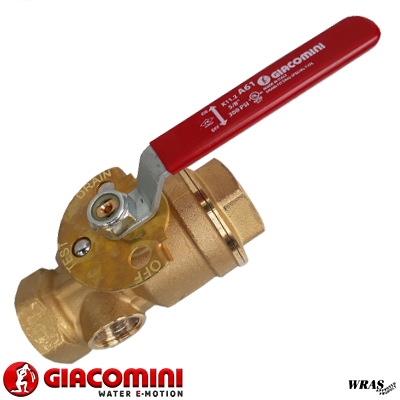

Professional Overview (Giacomini A61)

Definition: A Test & Drain valve is a multifunctional fire protection device designed to combine both testing and draining operations in wet sprinkler systems. It allows system performance verification and controlled water discharge through a single compact unit.

Application Areas

• Fire sprinkler systems in commercial buildings

• Warehouses and industrial facilities

• Residential complexes with wet pipe systems

• Areas requiring periodic testing and controlled drainage

Flow Pattern

• Provides controlled discharge for system testing (orifice sized to match sprinkler K‑factor).

• Allows full drainage of system piping when required.

• Optional sight glass enables visual confirmation of water flow.

Advantages

• Combines two functions (test + drain) in one valve, reducing installation complexity.

• UL Listed & FM Approved for compliance with international fire protection standards.

• Forged brass body ensures durability and corrosion resistance.

• Compact design minimizes space usage and integrates easily with piping layouts.

• Tamper‑resistant handle prevents unauthorized operation.

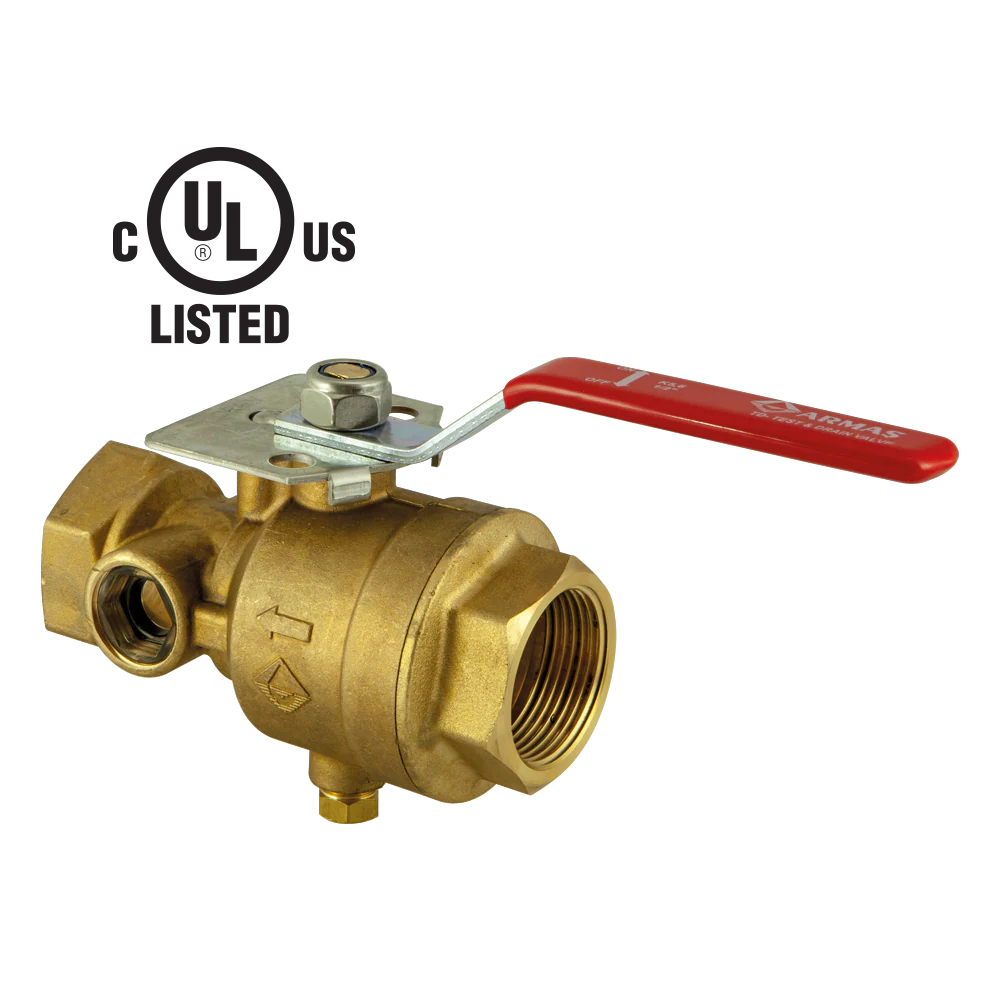

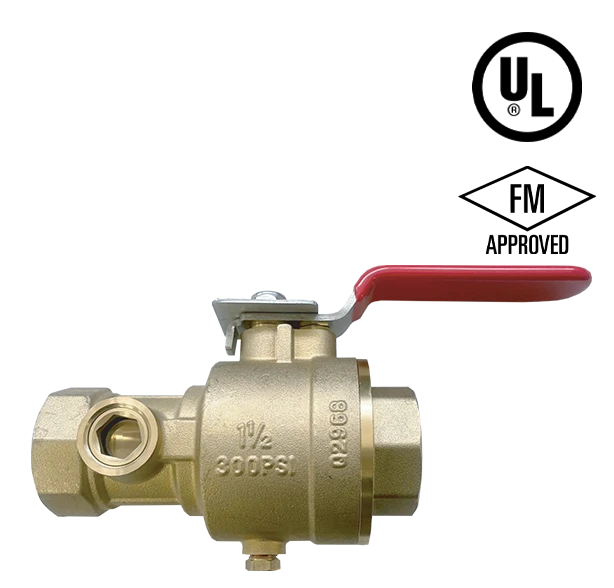

Appearance

• Brass body with chrome‑plated ball and PTFE seat

• Steel lever handle with clear position indicator

• Optional polycarbonate sight glass for inspection

• Typically installed inline with sprinkler piping, projecting slightly with a compact profile

📊 Technical Specifications
